Timberix™
Perforated E32/32/8
Perforated

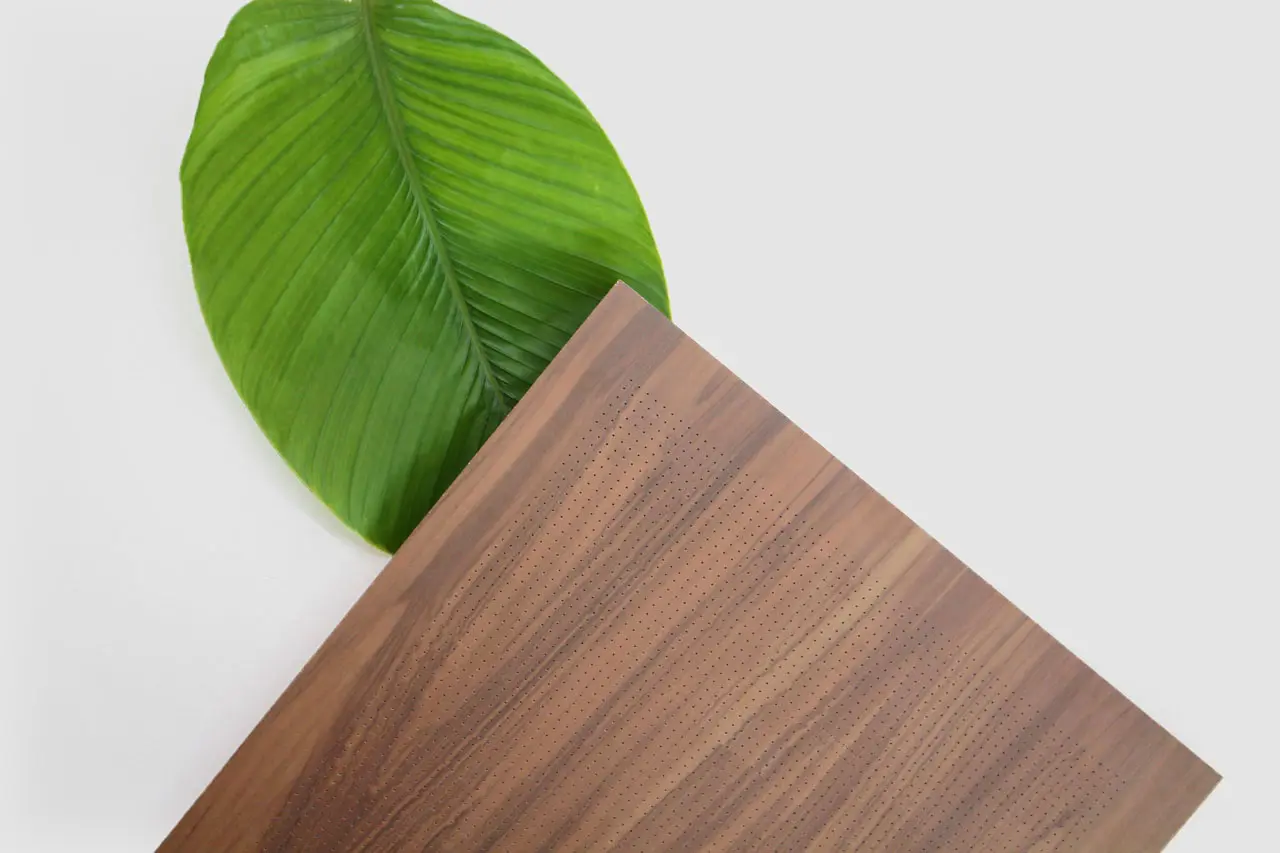

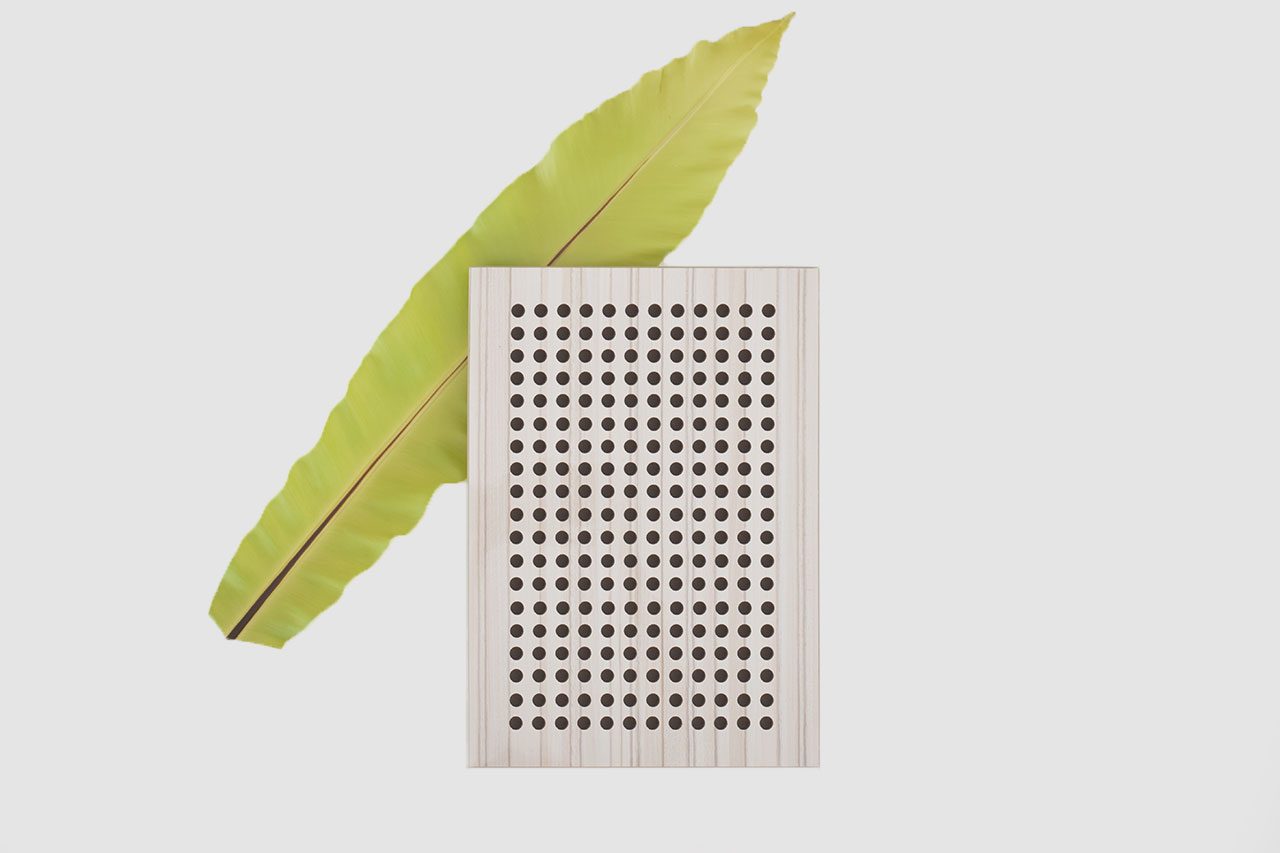

Timberix™ wooden perforated panels is made with a 2-layer perforation structure, which traps and diffracts sound in the holes. The sound that passes through the perforation is further absorbed by an acoustic substrate such as fibreglass or mineral wool, which reduces reverberation in the room. The perforation comes in many sizes ranging from 1mm to 25mm. Smaller holes are better at attenuating low frequency sounds, whereas larger holes are better at reducing high frequency sounds.
Download Specification Sheets ZIP
Specifications
- Structure: Basic Material, Finishing & Fleece
- Material: E1 MDF, FR MDF, MgO Composite, etc.
- Front Surface: Melamine, PP, Wood Veneer, Paint, etc.
- Standard Dimension: 600mm x 600mm, 600mm x 1200mm, 1200mm x 1200mm, 1200mm x 2400mm
- Standard Thickness: 12mm, 15mm, 18mm
- Distances of Two Holes: 8/8mm, 16/16mm and 32/32mm
- Diameter of Holes: 1, 2, 3, 4, 5, 6, 8,10, 12mm, etc.
- Standard Patterns: E8/8/3, E16/16/6, E16/16/8, E32/32/6, E32/32/8, V8/8/3m V16/16/6, V16/16/8, V32/32/6, V32/32/8
- Hole Arrangement: Linear (E), Staggered (V)
- Eco-Friendly Test: EN 13986 = E1
- Fire-Rated Test: EN 13501-1 = Class B s1, d0
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. Timberix™ wooden perforated panels come in 10 standard patterns: E8/8/3, E16/16/6, E16/16/8, E32/32/6, E32/32/8, V8/8/3, V16/16/6, V16/16/8, V32/32/6, V32/32/8. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter. The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Preparation
- Place of installation must be dry, with temperature no less than 10 degrees Celsius.
- Humidity level should be kept between 40% to 60%.
- Timberix™ panels must be placed on site for at least 48 hours in order to adapt to environmental conditions.
Perforated E8/8/3
Perforated E16/16/6
Installation
- Mark out placement of Timberix™ panels, and take into account M&E positions.
- Decide on type of installation system to use.
- Install acoustic substrate of choice.
- For wood laminate and veneer finishes, ensure that panels are installed with matching grain directions.
- Clean surface of the Timberix™ panels with compressed air and gently wipe with dry cloth.

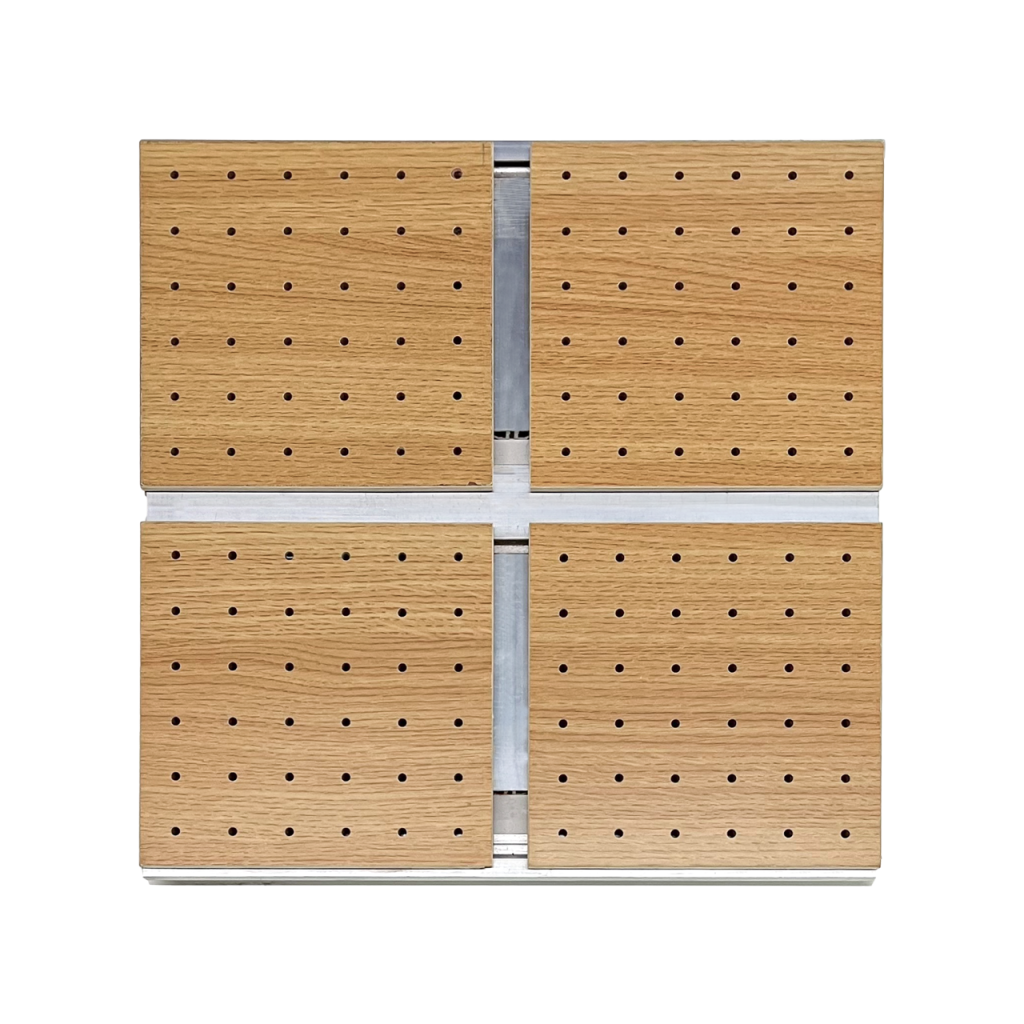

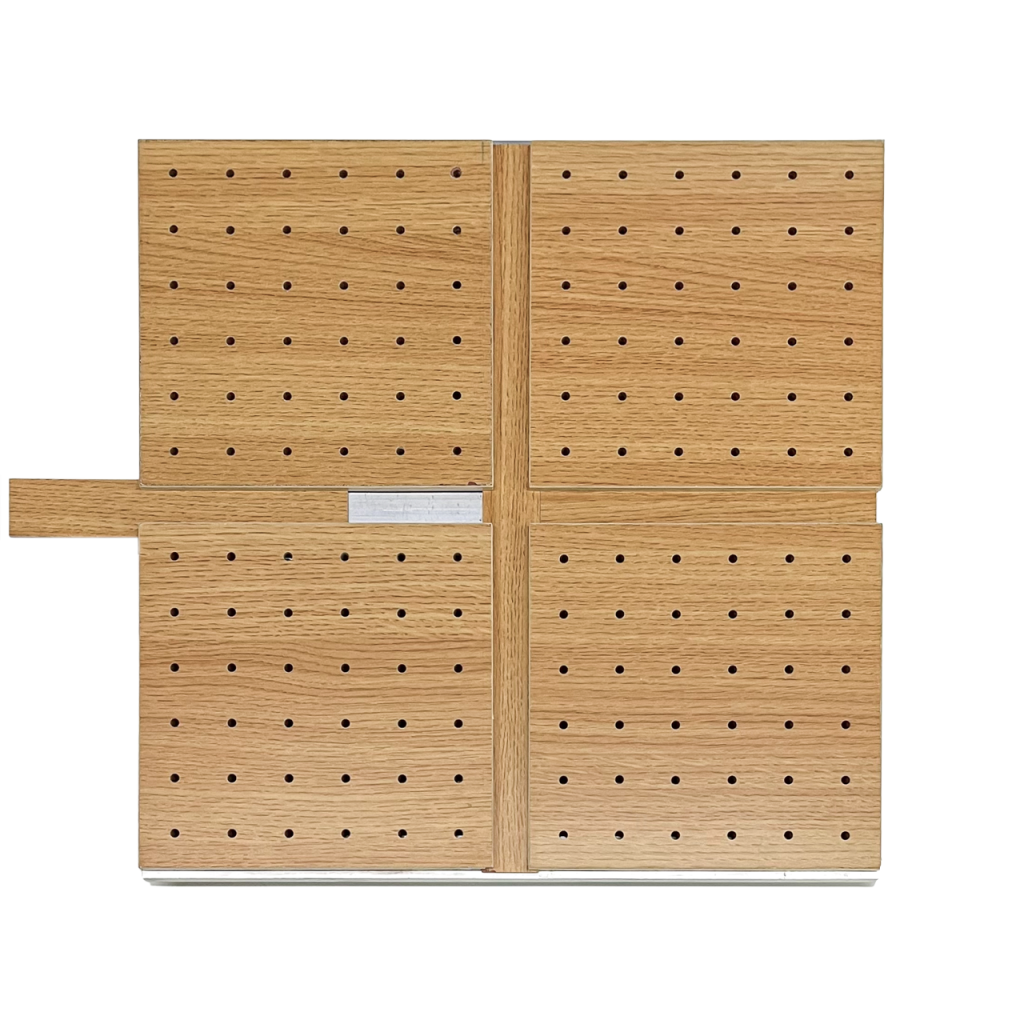

Installation with Gap

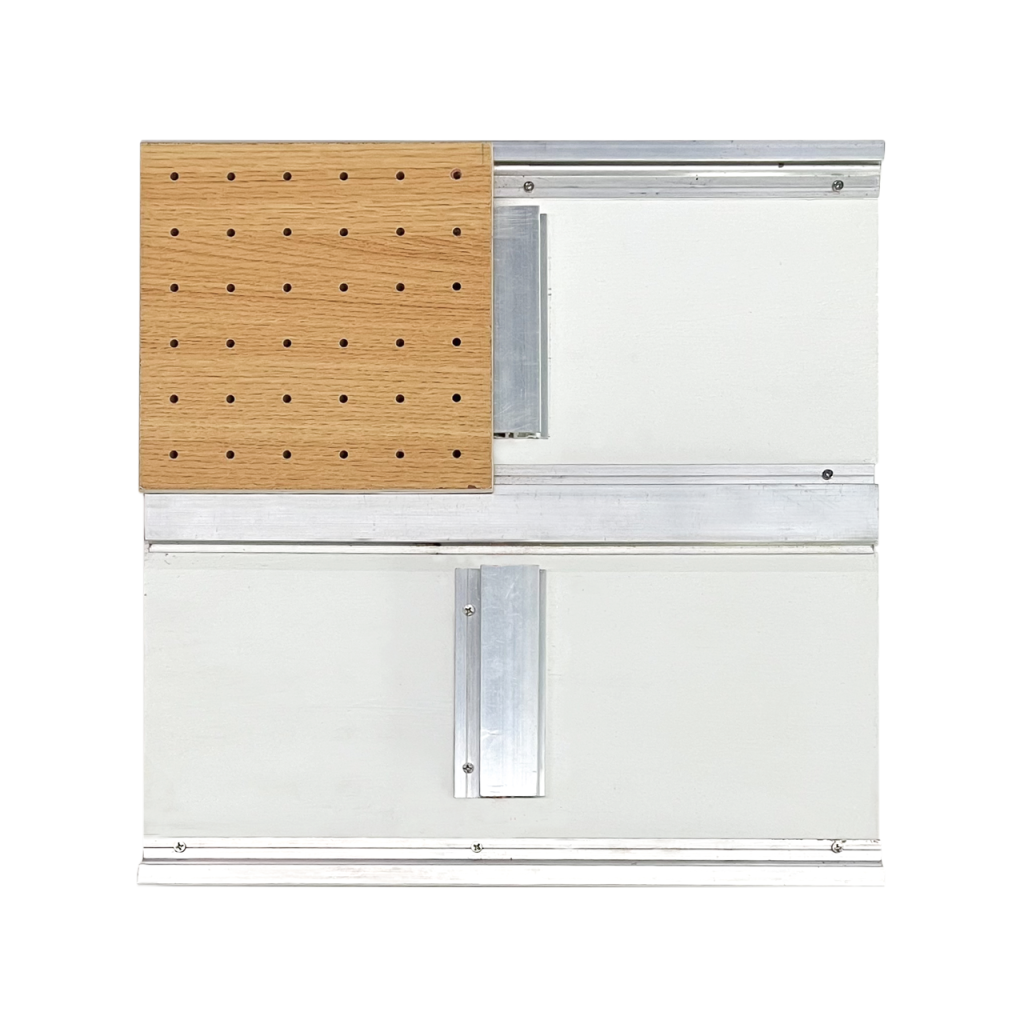

1. Install the alumnium keels
2. Insert the perforated boards
3. Slot in the spline
Section Detail with Gap
Installation without Gap

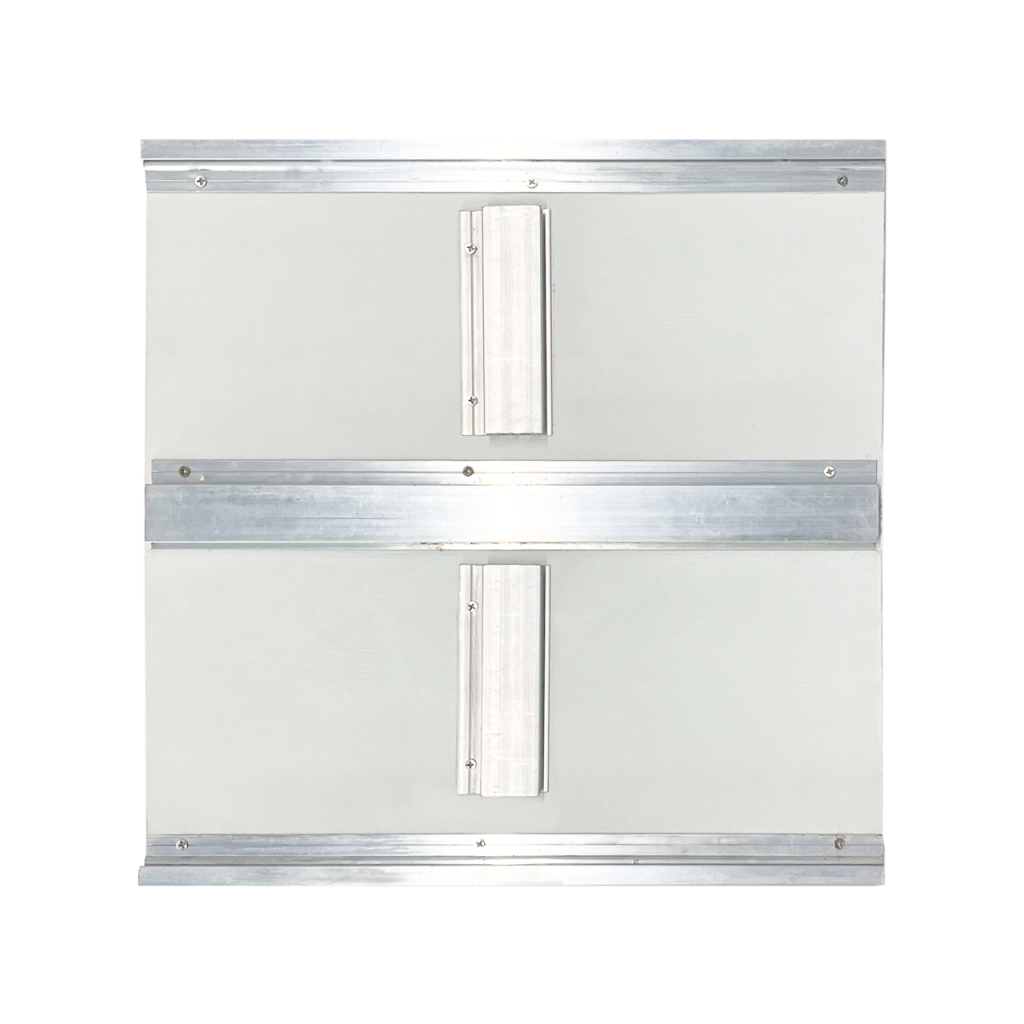

1. Install the alumnium keels
2. Insert the perforated boards

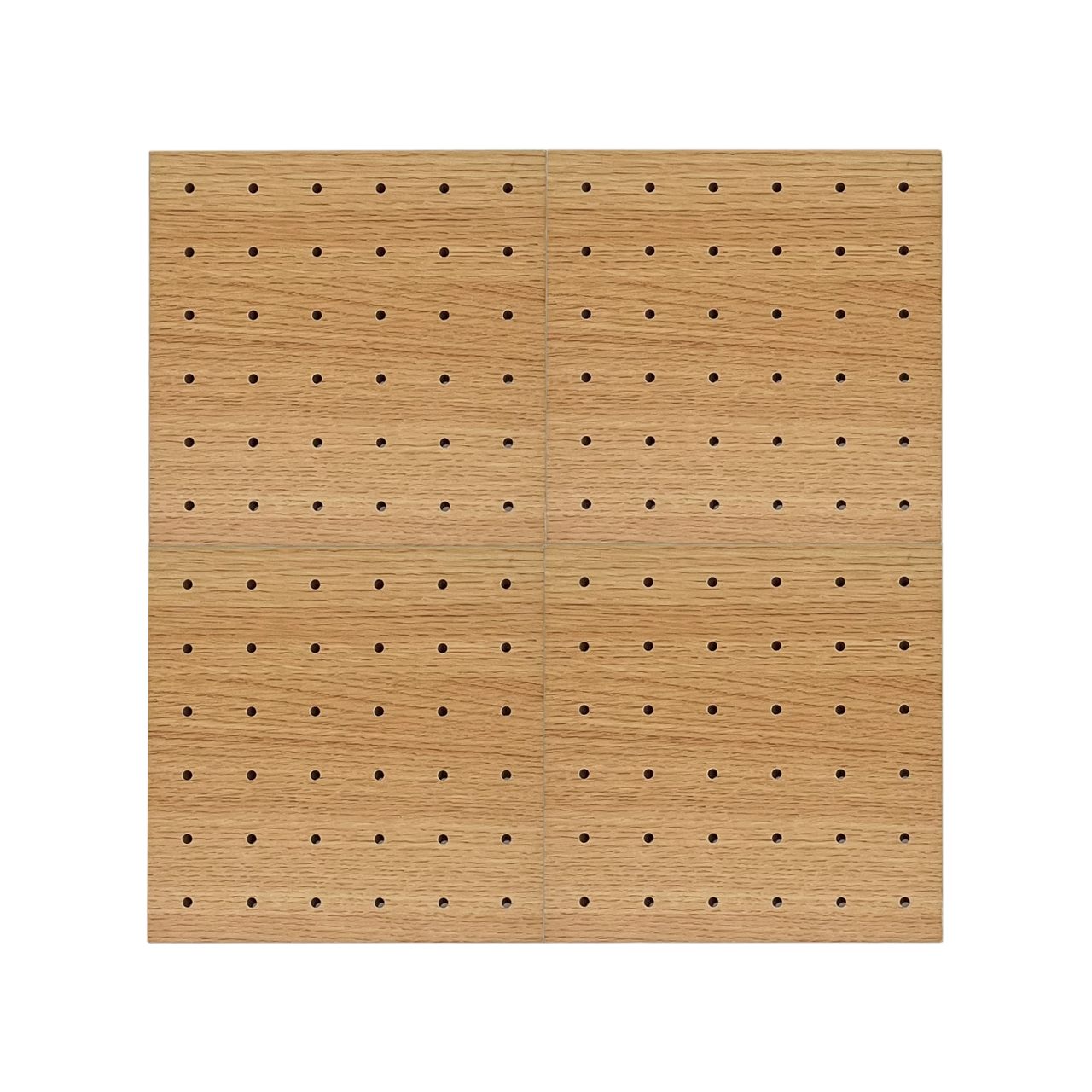

3. Ensure no gaps
Section Detail with No Gap
Timberix™ E8/8/3
3mm diameter linear perforation spaced 8mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (8mm), and the last number refers to the hole diameter (3mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Perforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Perforated
Section Detail with Perforated Pattern E8/8/3
Hole Diameter = 3mm
Distance between Holes = 8mm
Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.73
NRC = 0.75

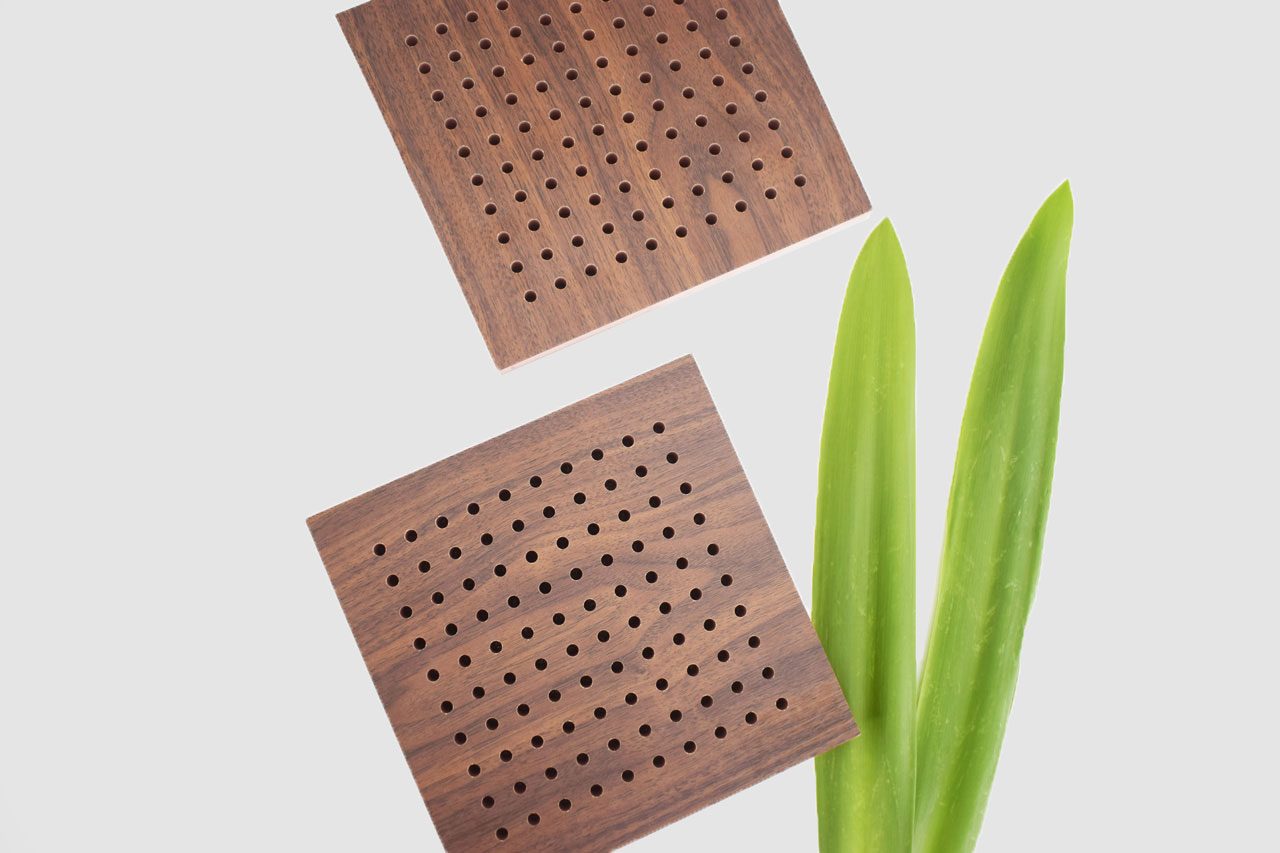

Timberix™ E16/16/6
6mm diameter linear perforation spaced 16mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (16mm), and the last number refers to the hole diameter (6mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Perforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Perforated
Section Detail with Perforated Pattern E16/16/6
Hole Diameter = 6mm
Distance between Holes = 16 mm
Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.73
NRC = 0.73

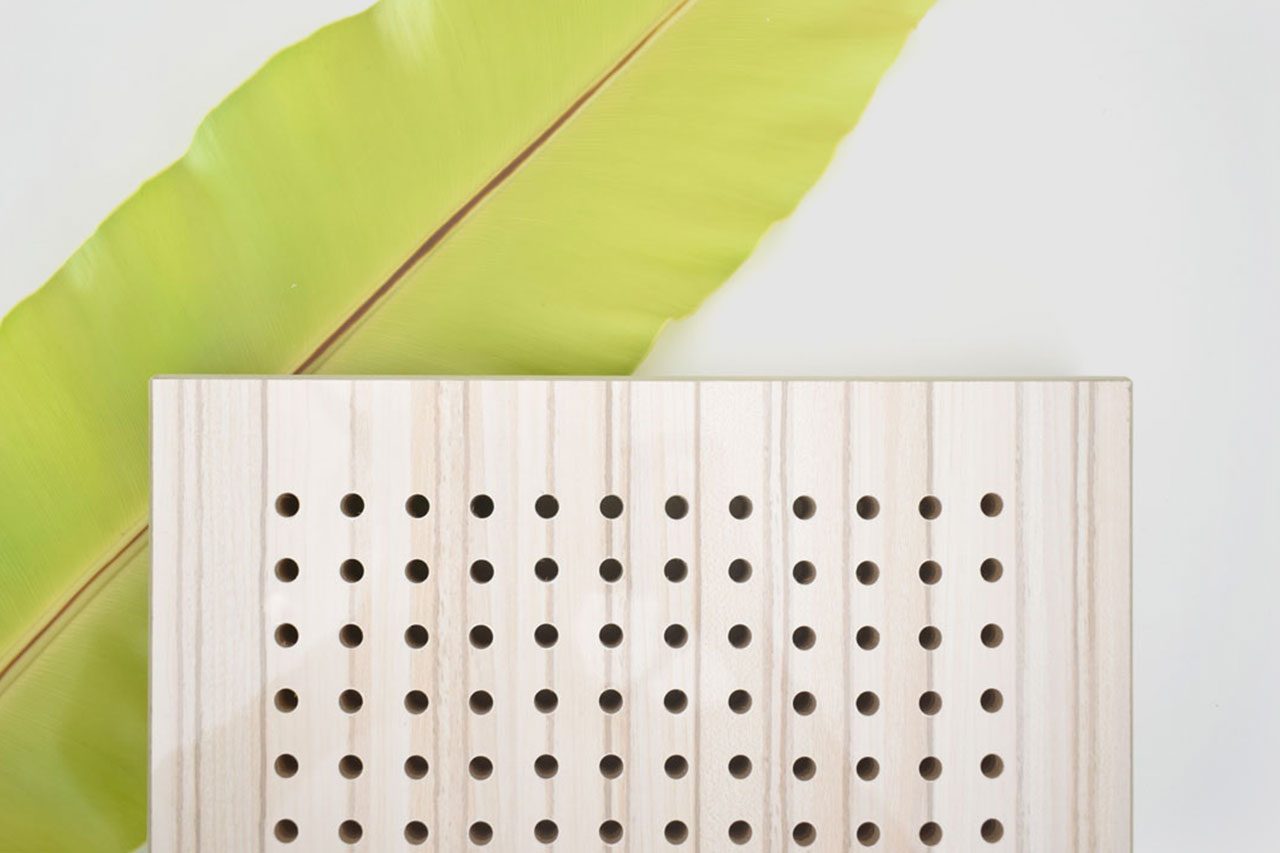

Timberix™ E16/16/8
8mm diameter linear perforation spaced 16mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (16mm), and the last number refers to the hole diameter (8mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Perforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Perforated
Section Detail with Perforated Pattern E16/16/8
Hole Diameter = 8mm
Distance between Holes = 16mm

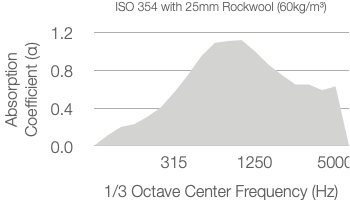

Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.80
NRC = 0.81

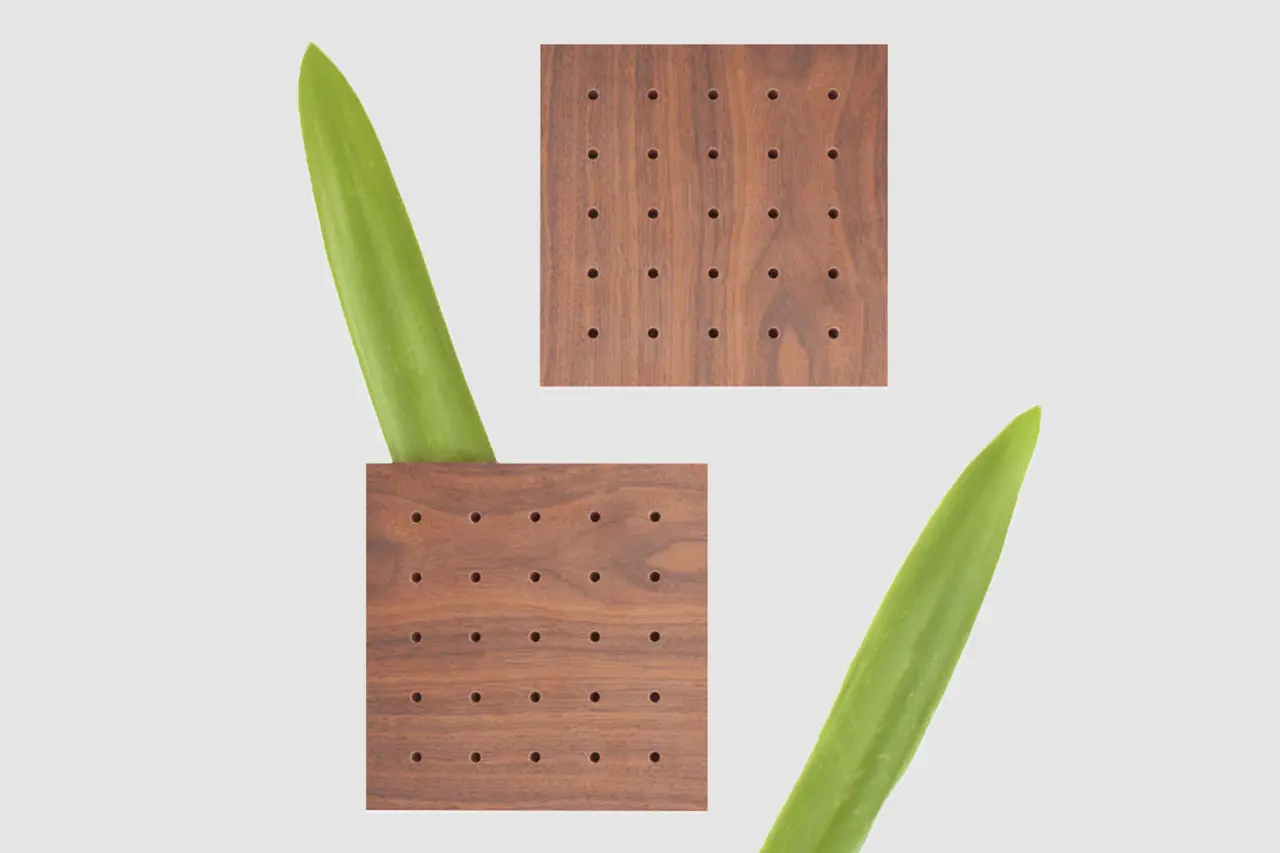

Timberix™ E32/32/6
6mm diameter linear perforation spaced 32mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (32mm), and the last number refers to the hole diameter (6mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Perforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Perforated
Section Detail with Perforated Pattern E32/32/6
Hole Diameter = 6mm
Distance between Holes = 32mm

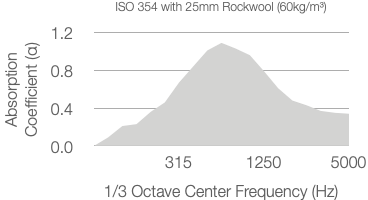

Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.73
NRC = 0.73
Timberix™ E32/32/8
8mm diameter linear perforation spaced 32mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (32mm), and the last number refers to the hole diameter (8mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Perforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Perforated
Section Detail with Perforated Pattern E32/32/8
Hole Diameter = 8mm
Distance between Holes = 32mm

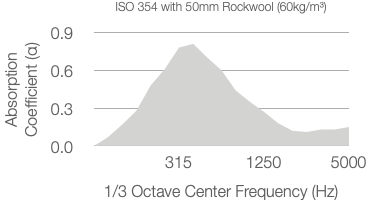

Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.45
NRC = 0.45
Timberix™ V8/8/3
3mm diameter linear perforation spaced 8mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (8mm), and the last number refers to the hole diameter (3mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Perforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Perforated
Section Detail with Perforated Pattern V8/8/3
Hole Diameter = 3mm
Distance between Holes = 8mm
Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.73
NRC = 0.75

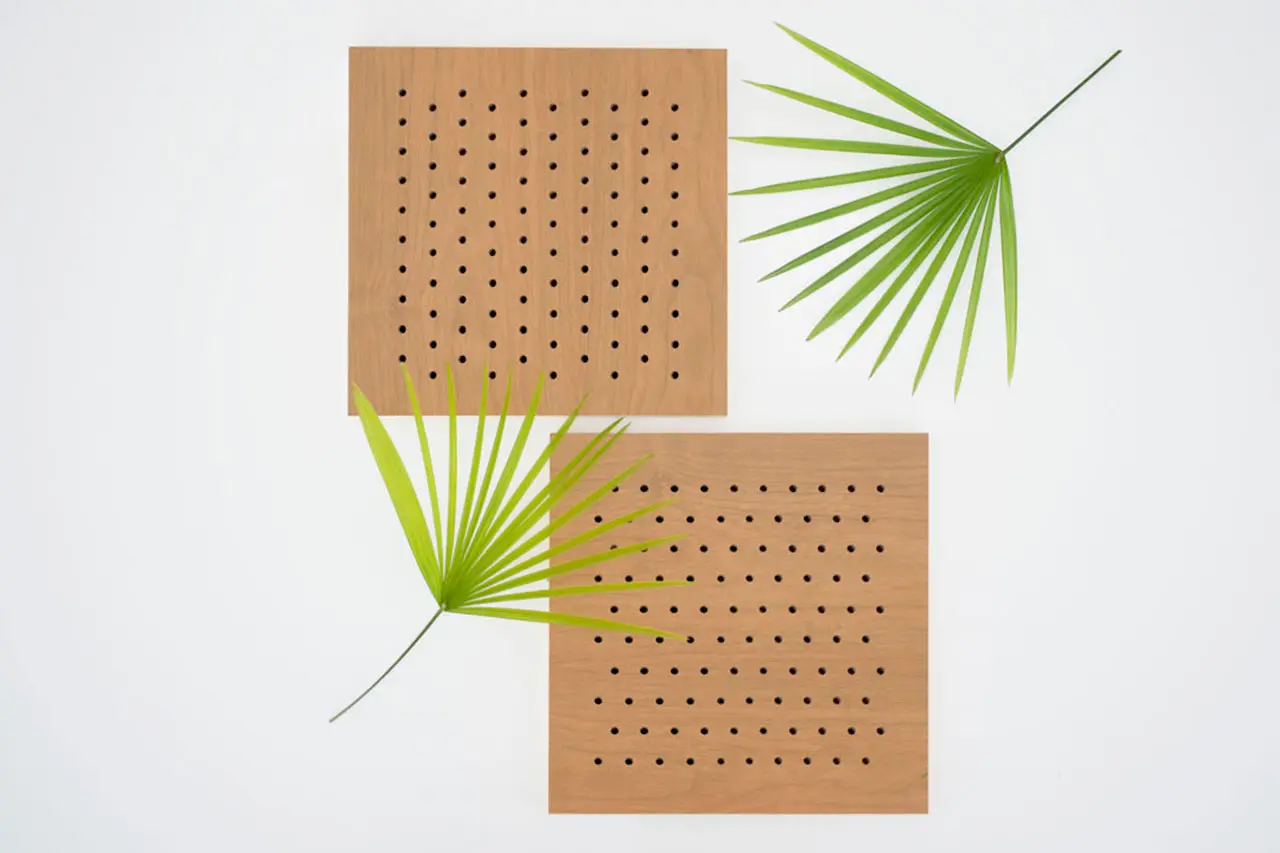

Timberix™ V16/16/6
6mm diameter linear perforation spaced 16mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (16mm), and the last number refers to the hole diameter (6mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Perforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Perforated
Section Detail with Perforated Pattern V16/16/6
Hole Diameter = 6mm
Distance between Holes = 16mm
Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.73
NRC = 0.73
Timberix™ V16/16/8
8mm diameter linear perforation spaced 16mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (16mm), and the last number refers to the hole diameter (8mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Perforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Perforated
Section Detail with Perforated Pattern V16/16/8
Hole Diameter = 8mm
Distance between Holes = 16mm

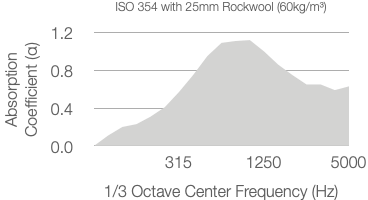

Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.80
NRC = 0.81

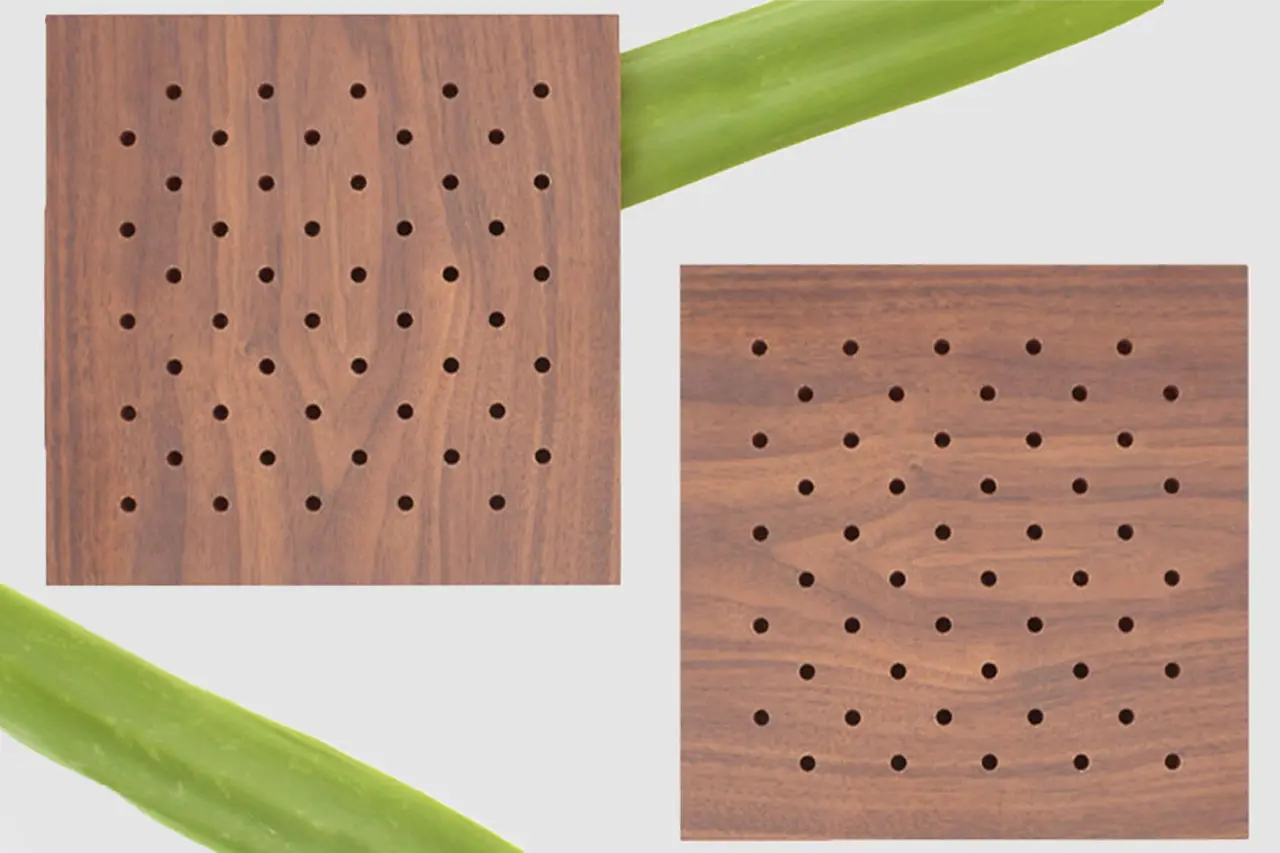

Timberix™ V32/32/6
6mm diameter linear perforation spaced 32mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (32mm), and the last number refers to the hole diameter (6mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Perforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Perforated
Section Detail with Perforated Pattern V32/32/6
Hole Diameter = 6mm
Distance between Holes = 32mm

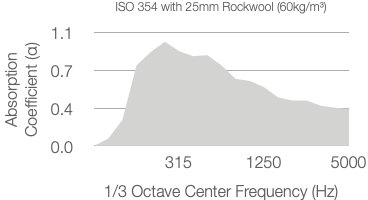

Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.71
NRC = 0.73

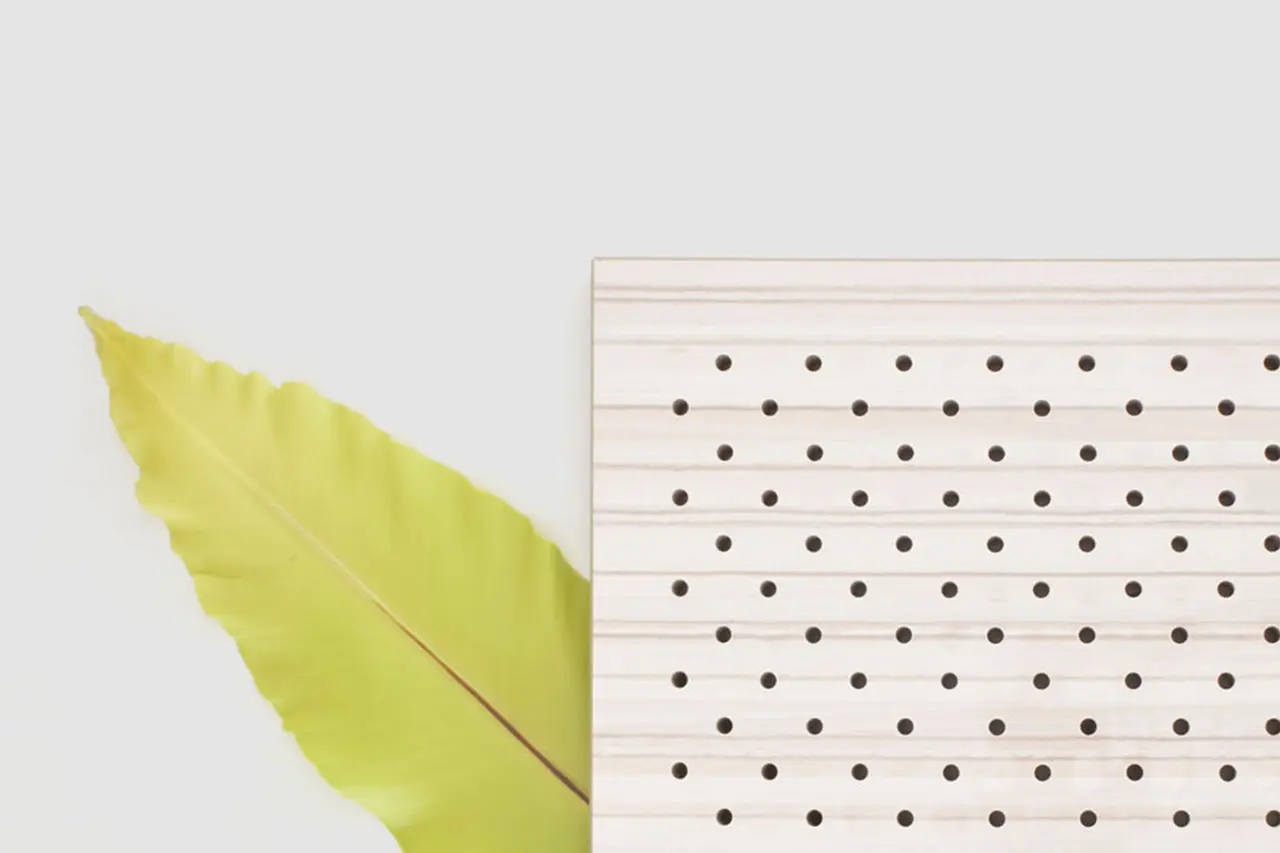

Timberix™ V32/32/8
8mm diameter linear perforation spaced 32mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (32mm), and the last number refers to the hole diameter (8mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Perforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Perforated
Section Detail with Perforated Pattern V32/32/8
Hole Diameter = 8mm
Distance between Holes = 32mm
Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.45
NRC = 0.45
