Grooved

Timberix™ wooden grooved panels reduce echoes by trapping and diffracting sound in the grooves and perforation found on the surface. The sound that passes through the perforation is further absorbed by an acoustic substrate, which reduces reverberation in the room. Smaller grooves are better at attenuating high frequency sounds, whereas larger grooves are better at controlling low frequency sounds.

Download Specification Sheets ZIP

Grooved 14/2

Grooved 13/3

Grooved 28/4

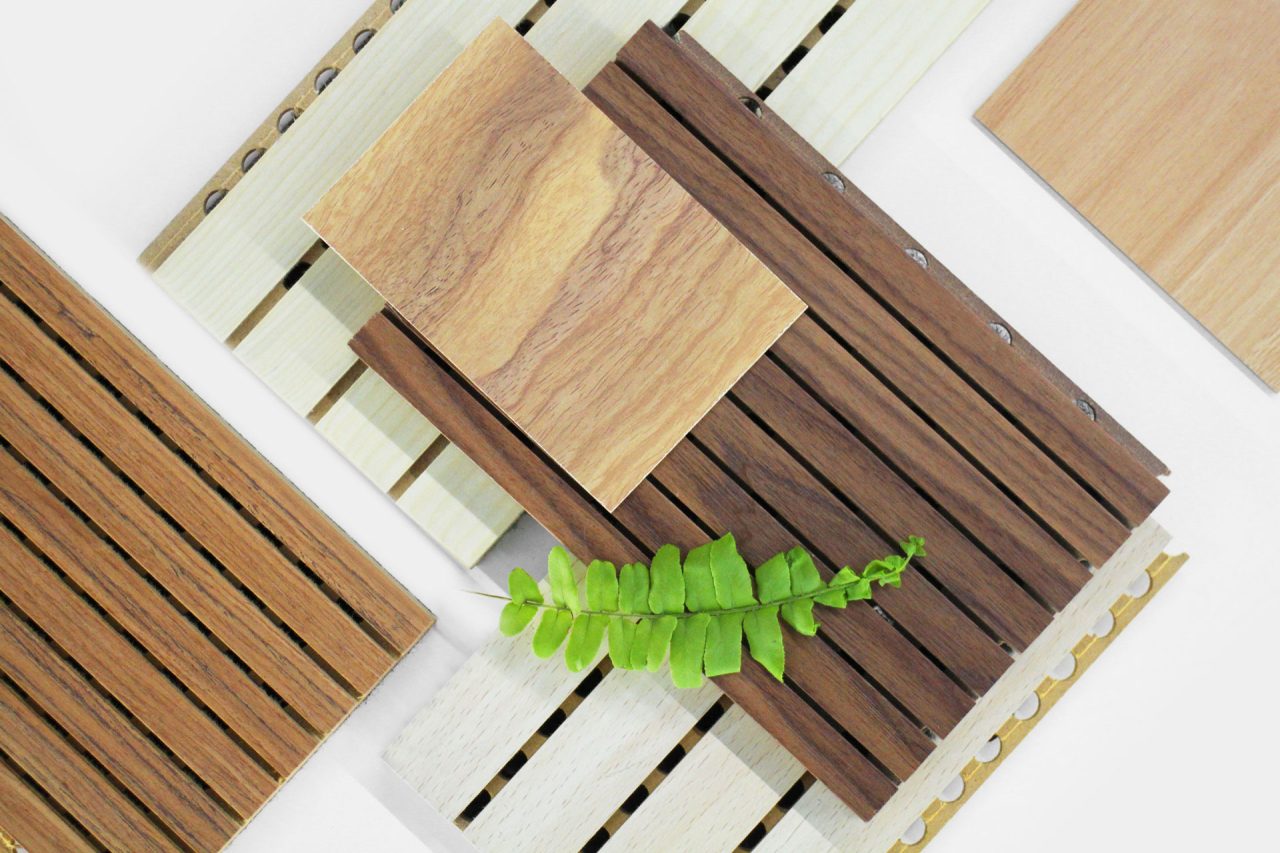

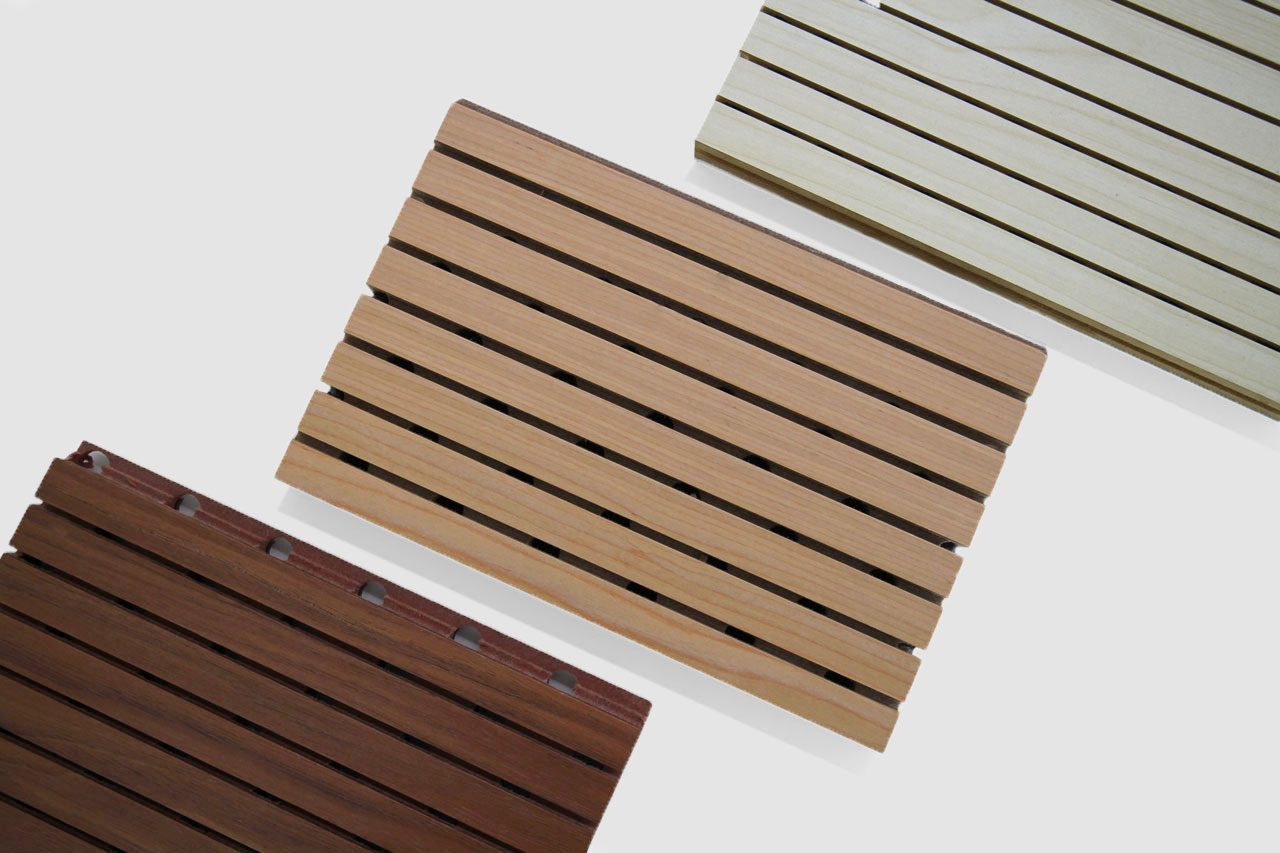

Our wooden grooved acoustic panel is made up of a series of slats and grooves. Each panel has a machined tongue and groove joint for a seamless joinery. Timberix™ wooden grooved panels come in 3 different patterns: 13-3, 14-2 and 28-4. The first number refers to the slat size (mm) and second number refers to the groove size (mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.

Specifications

  1. Structure: Base Material, Finishing & Fleece
  2. Material: E1 MDF, FR MDF, MgO Composite Board, etc.
  3. Finishing: Paint, Melamine, PP, Veneer, etc.
  4. Standard Dimension: 2440*192mm, 2440*128mm
  5. Standard Thickness: 12mm, 15mm,18mm
  6. Standard Pattern: 13-3,14-2, 28/4, 59/5
  7. Eco-Friendly Test: EN 13986 : E1
  8. Fire-Rated Test: EN 13501-1 = Class B s1, d0

Preparation

  1. Place of installation must be dry, with temperature no less than 10 degrees Celsius.
  2. Humidity level should be kept between 40% to 60%.
  3. Timberix™ panels must be placed on site for at least 48 hours in order to adapt to the environmental conditions.
  4. Distance between each wooden batten should be less than 500mm, and that between each steel keel should be no more than 600mm.

Installation

  1. Mark out placement of Timberix™
    panels, and take into account M&E positions.
  2. Cut panels to size according to final positions.
  3. Decide on type of installation system to use.
  4. Install acoustic substrate of choice.
  5. Join Timberix™ wooden grooved panels from top-to-bottom, and left-to-right.
  6. For wood laminate and veneer finishes, ensure that wooden grooved panels are installed with matching
    grain directions.
  7. Clean surface of the Timberix™ panels with compressed air and gently wipe with dry cloth.

Section Detail

1. Installation accessories

2. Fix H-rail A01 onto wooden battens

3. Pad with sound absorbing substrate

4. Fix rotary clips A02 and A03

Slot panels into rotary clips

Install the next panel onto the previous panel

Timberix 14/2

Tongue and groove joint with 14mm slat and 2mm groove

Our wooden grooved acoustic panel is made up of a series of slats and grooves. Each panel has a machined tongue and groove joint for a seamless joinery. The first number refers to the slat size (14mm) and second number refers to the groove size (2mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.

Download Specification Sheet PDF

Grooved Detail

Timberix™ Grooved acoustic panels are made up of a series of slats and grooves. The first number refers to the slat width and second number refers to the groove width. Each panel has a 10mm slot for turning clip.

Drawing of Timberix™ Grooved

Section Detail with Grooved Pattern 14/2

Groove Width = 2mm
Slat Width = 14mm

Sound Absorption Coefficient

Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.

SAA = 0.84
NRC = 0.87

Timberix™ Grooved 14/2
Wan Tho Avenue, Singapore
HYLA Architects

previous arrow
next arrow
previous arrownext arrow
Slider

Timberix 13/3

Tongue and groove joint with 13mm slat and 3mm groove

Our wooden grooved acoustic panel is made up of a series of slats and grooves. Each panel has a machined tongue and groove joint for a seamless joinery. The first number refers to the slat size (13mm) and second number refers to the groove size (3mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.

Download Specification Sheet PDF

Grooved Detail

Timberix™ Grooved acoustic panels are made up of a series of slats and grooves. The first number refers to the slat width and second number refers to the groove width. Each panel has a 10mm slot for turning clip.

Drawing of Timberix™ Grooved

Section Detail with Grooved Pattern 13/3

Groove Width = 3mm
Slat Width = 13mm

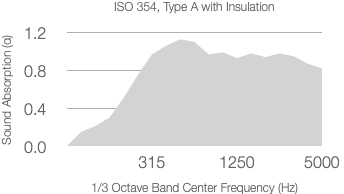

Sound Absorption Coefficient

Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.

SAA = 0.75
NRC = 0.76

Timberix™ Grooved 13/3
Equinix, Singapore
AWP Architects

previous arrow
next arrow
previous arrownext arrow
Slider

Timberix 28/4

Tongue and groove joint with 28mm slat and 4mm groove

Our wooden grooved acoustic panel is made up of a series of slats and grooves. Each panel has a machined tongue and groove joint for a seamless joinery. The first number refers to the slat size (28mm) and second number refers to the groove size (4mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.

Download Specification Sheet PDF

Grooved Detail

Timberix™ Grooved acoustic panels are made up of a series of slats and grooves. The first number refers to the slat width and second number refers to the groove width. Each panel has a 10mm slot for turning clip.

Drawing of Timberix™ Grooved

Section Detail with Grooved Pattern 28/4

Groove Width = 4mm
Slat Width = 28mm

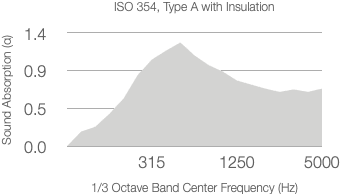

Sound Absorption Coefficient

Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.

SAA = 0.64
NRC = 0.69

Timberix™ Grooved 28/4
Clementi, Singapore
Aural-Aid Acoustics

previous arrow
next arrow
previous arrownext arrow
Slider

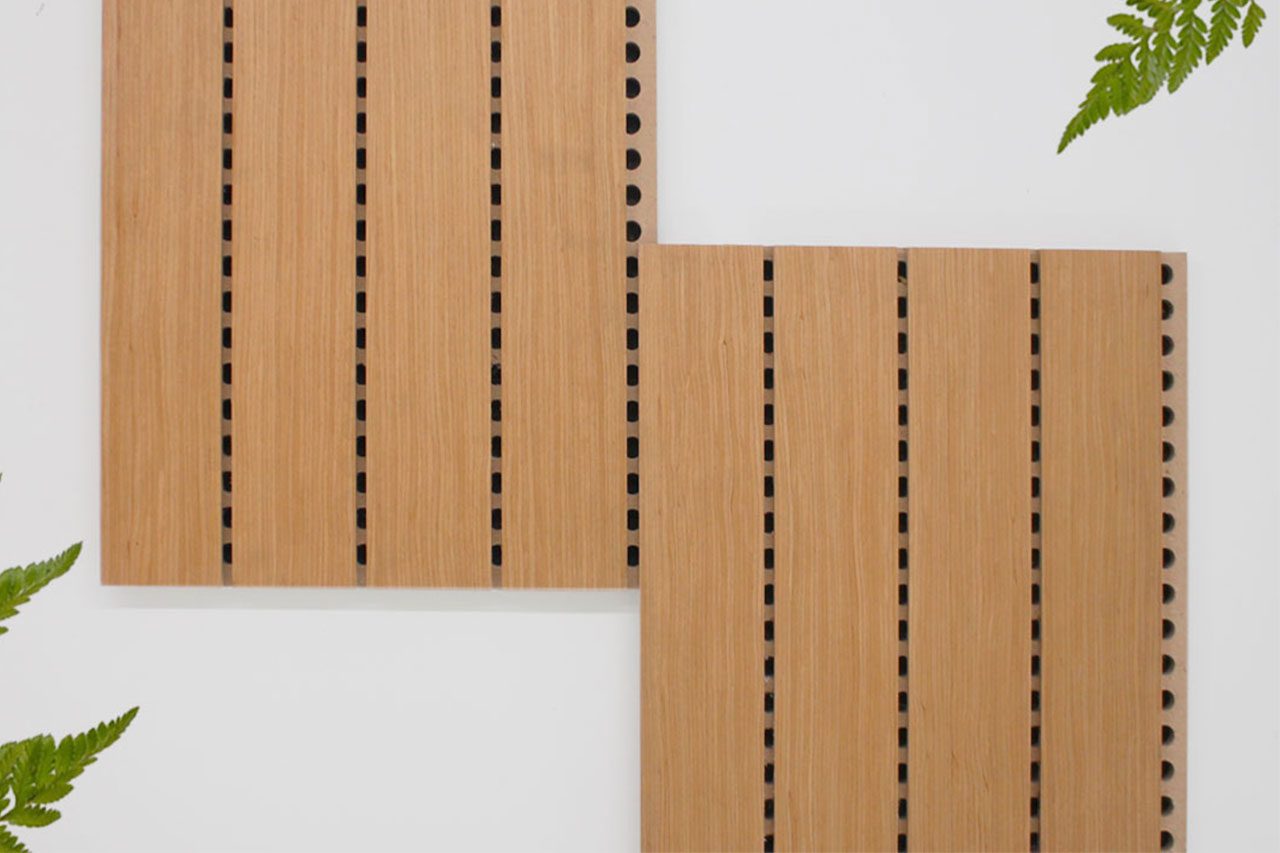

Timberix 59/5

Tongue and groove joint with 59mm slat and 5mm groove

Our wooden grooved acoustic panel is made up of a series of slats and grooves. Each panel has a machined tongue and groove joint for a seamless joinery. The first number refers to the slat size (28mm) and second number refers to the groove size (4mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.

Download Specification Sheet PDF

Grooved Detail

Timberix™ Grooved acoustic panels are made up of a series of slats and grooves. The first number refers to the slat width and second number refers to the groove width. Each panel has a 10mm slot for turning clip.

Drawing of Timberix™ Grooved

Section Detail with Grooved Pattern 59/5

Groove Width = 5mm
Slat Width = 59mm

Sound Absorption Coefficient

Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.

SAA = 0.73
NRC = 0.73

Timberix™
Grooved 59/5
