Timberix™
Microperforated V8/8/1

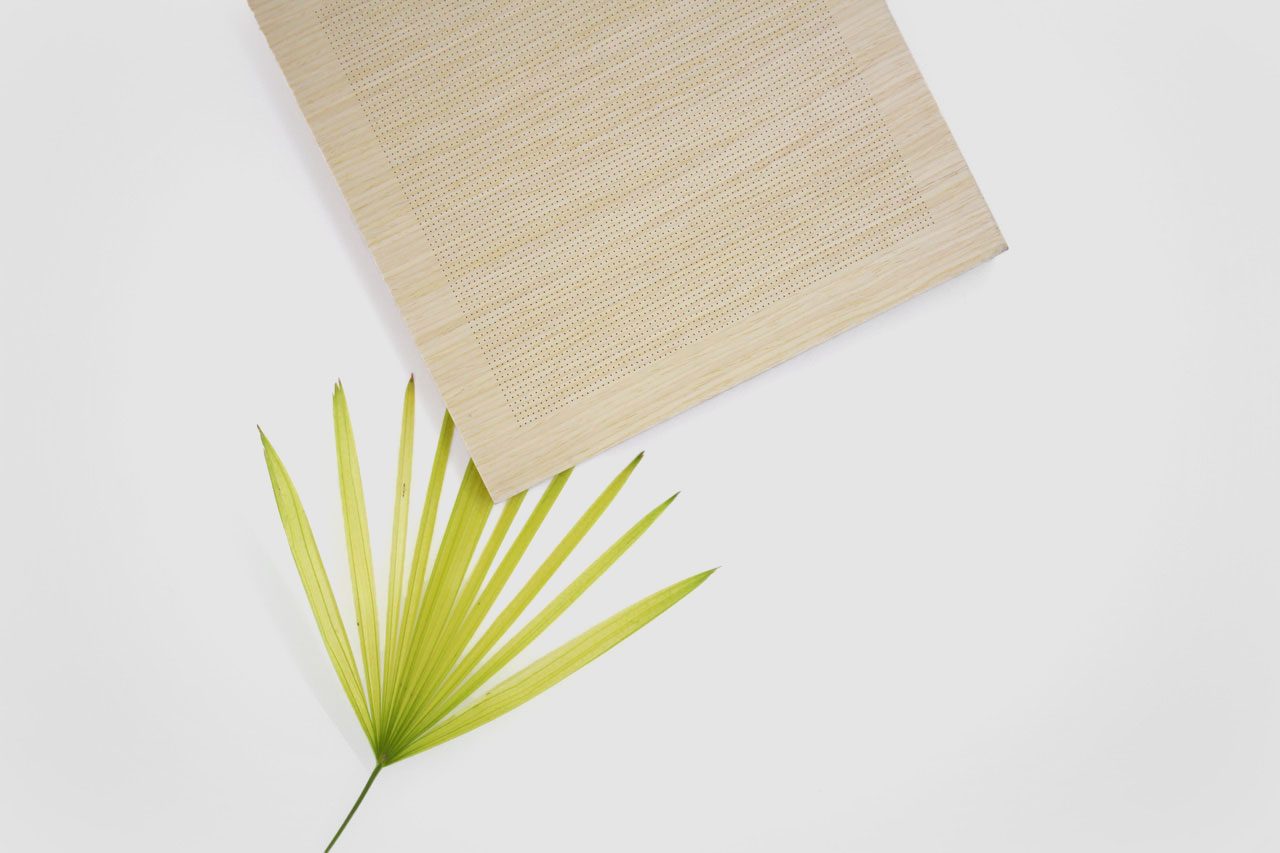

Microperforated
Timberix™ Microperforated panel is made with a 2-layer perforation structure, which traps and diffracts sound in the holes. The sound that passes through the perforation is further absorbed by acoustic substrate such as fiberglass or mineral wool, which reduces reverberation in the room. Timberix™ Microperforated are 0.5mm micro-holes only perceptible at short eye distance (+/- 250 000 holes/m2) and laminated on a 15mm thick perforated MDF eco-friendly board.
Download Specification Sheets ZIP
Specifications
- Structure: Basic Material, Finishing & Fleece
- Material: E1 MDF, FR MDF, MgO Composite, etc.
- Front Surface: Melamine, PP, Wood Veneer, Paint, etc.
- Standard Dimension: 600mm x 600mm, 600mm x 1200mm, 1200mm x 1200mm, 1200mm x 2400mm
- Standard Thickness: 12mm, 15mm, 18mm
- Distances of Two Holes: 1.8/1.8mm, 3/3mm, 4/4mm and 8/8mm
- Diameter of Holes: 0.5mm
- Standard Patterns: E4/4/1, E8/8/1, E3/3/0.5, E8/8/0.5, V4/4/1, V8/8/1, V1.8/1.8/0.5, V3.6/1.8/0.5, V4/4/0.5
- Hole Arrangement: Linear (E), Staggered (V)
- Eco-Friendly Test: EN 13986 = E1
- Fire-Rated Test: EN 13501-1 = Class B s1, d0
Our wooden microperforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. Timberix™ Microperforated come in 9 standard patterns: E4/4/1, E8/8/1, E3/3/0.5, E8/8/0.5, V4/4/1, V8/8/1, V1.8/1.8/0.5, V3.6/1.8/0.5, V4/4/0.5. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter. The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Preparation
- Place of installation must be dry, with temperature no less than 10 degrees Celsius.
- Humidity level should be kept between 40% to 60%.
- TIMBERIX panels must be placed on site for at least 48 hours in order to adapt to environmental conditions.

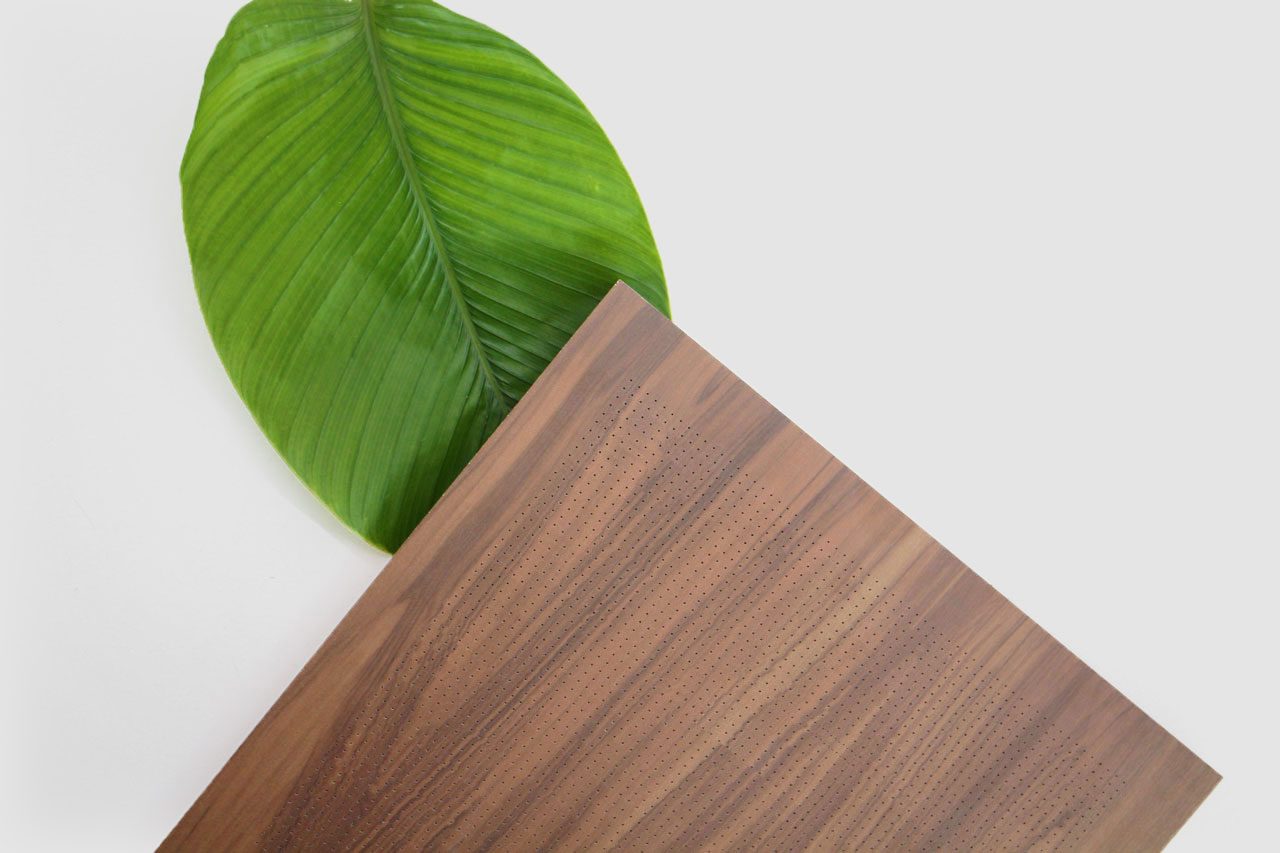

Microperforated 8/8/1

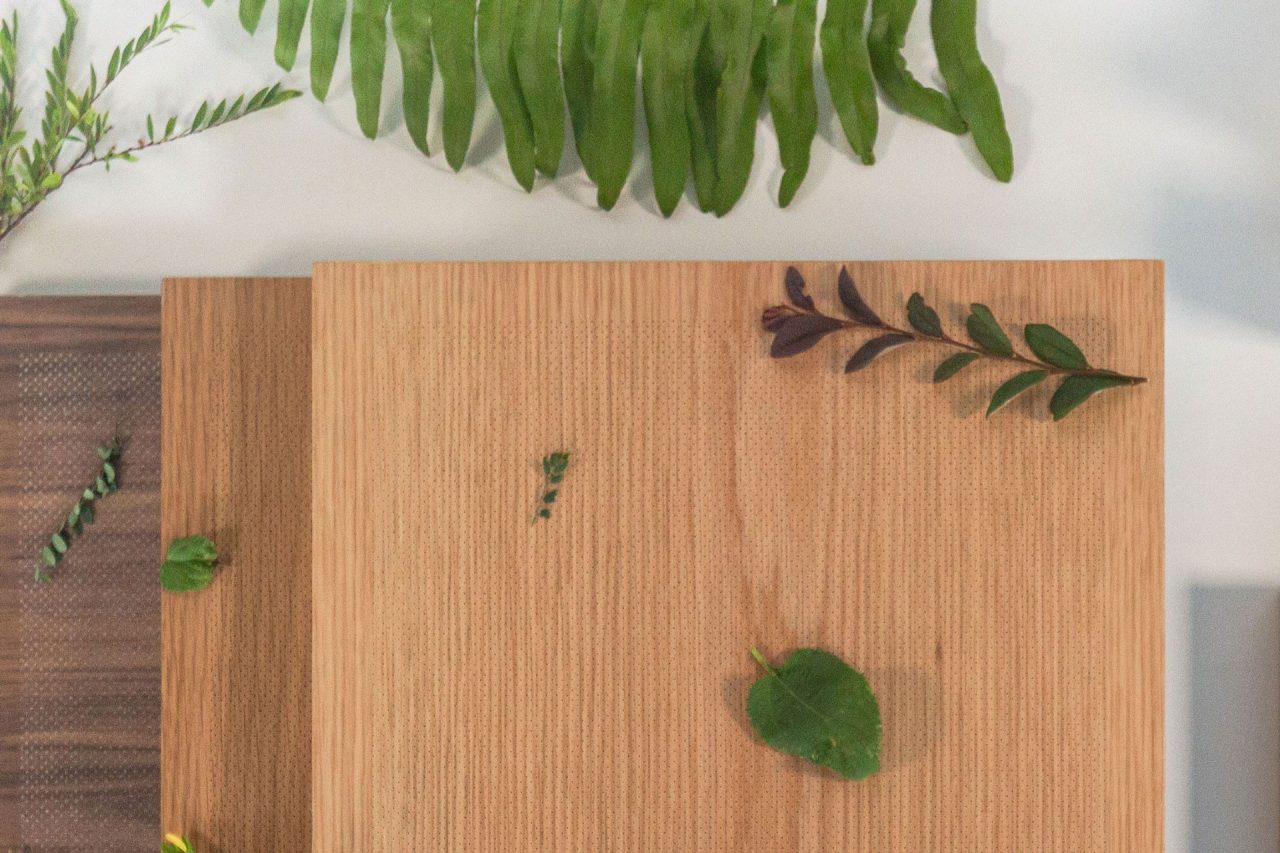

Microperforated V3.6/1.8/0.5
Installation
- Mark out placement of Timberix™ panels, and take into account M&E positions.
- Decide on type of installation system to use.
- Install acoustic substrate of choice.
- For wood laminate and veneer finishes, ensure that panels are installed with matching grain directions.
- Clean surface of the Timberix™ panels with compressed air and gently wipe with dry cloth.

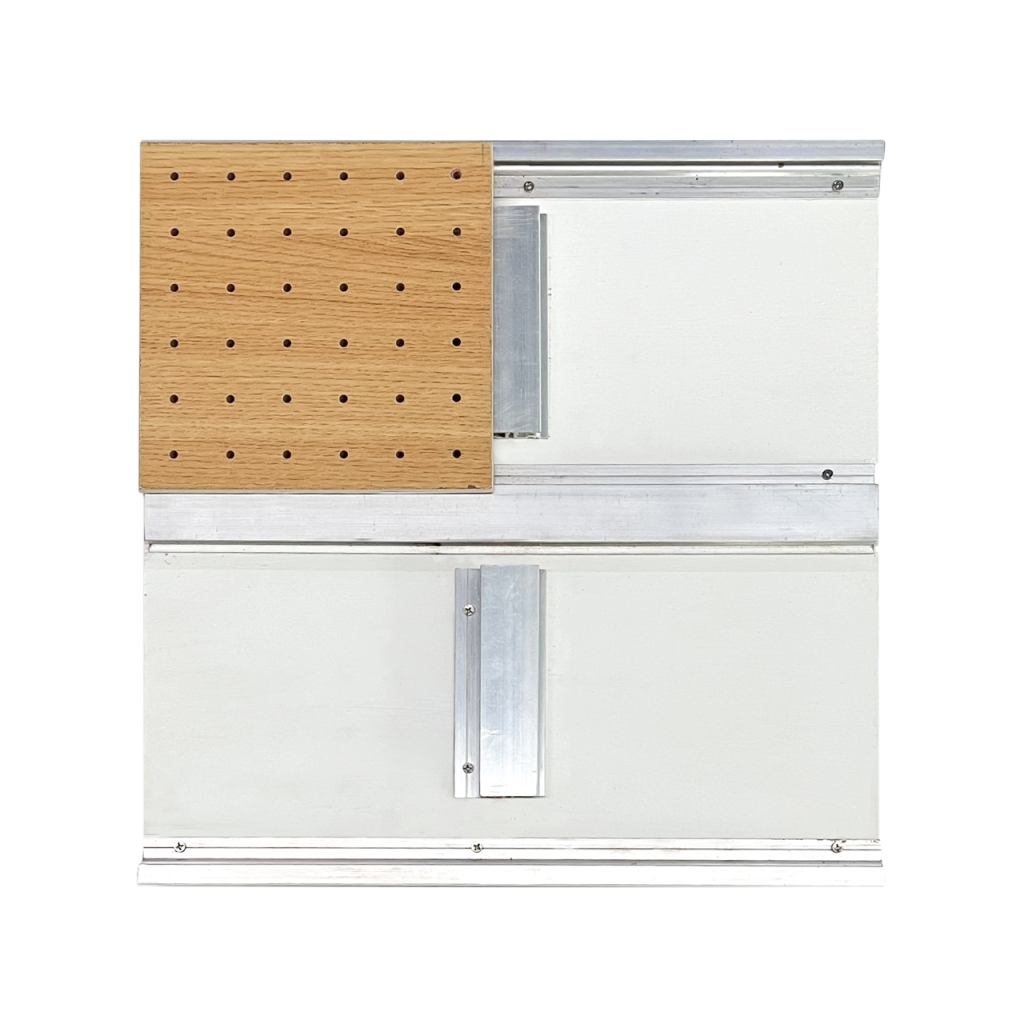

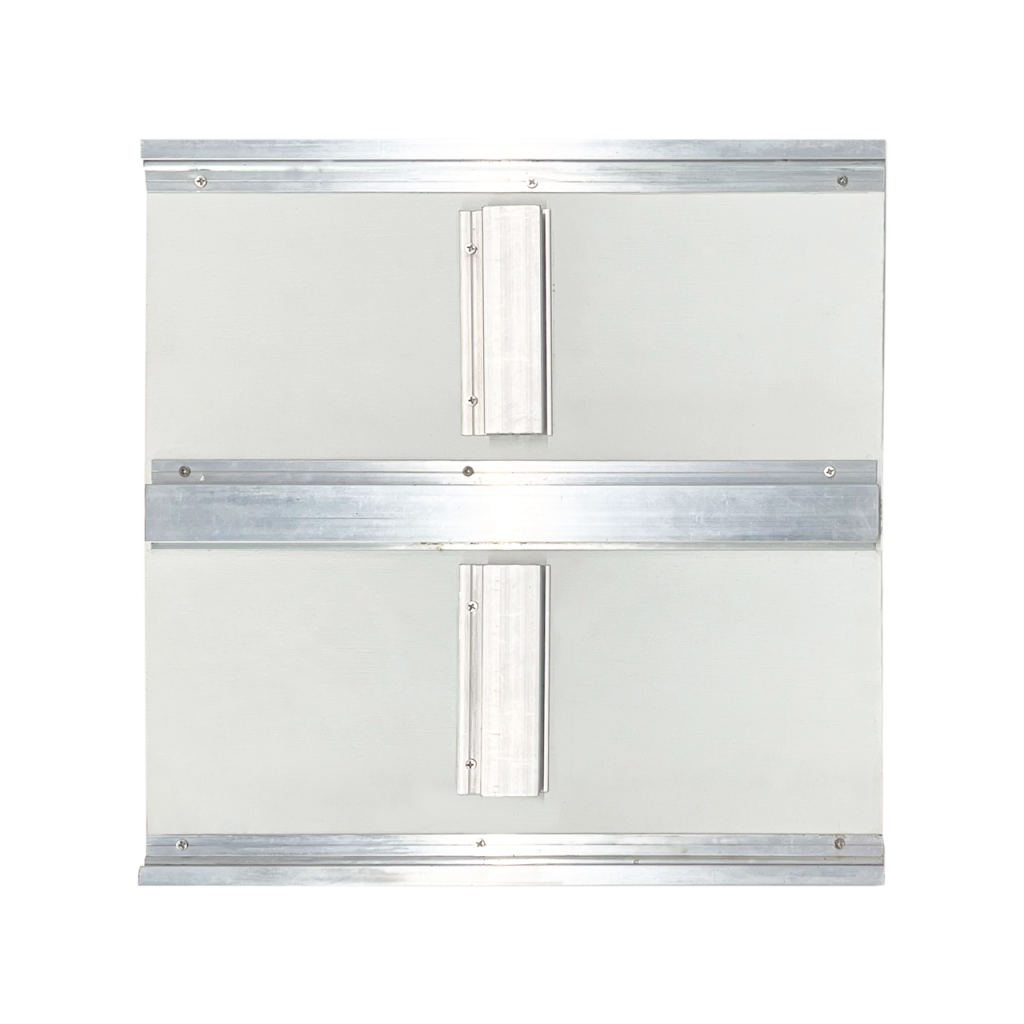

Installation with Gap
1. Install the alumnium keels
2. Insert the perforated boards
3. Slot in the spline
Section Detail with Gap
Installation without Gap
1. Install the alumnium keels
2. Insert the perforated boards
3. Ensure no gaps
Section Detail with No Gap
Timberix™ E4/4/1
1mm diameter linear perforation spaced 4mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (4mm), and the last number refers to the hole diameter (1mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Microperforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Microperforated
Section Detail with Microperforated Pattern E4/4/1
Hole Diameter = 1mm
Distance between Holes = 4mm
Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.78
NRC = 0.75
Timberix™
Microperforated E4/4/1
Timberix™
Microperforated E4/4/1
Timberix™ E8/8/1
1mm diameter linear perforation spaced 8mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (8mm), and the last number refers to the hole diameter (1mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Microperforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Microperforated
Section Detail with Microperforated Pattern E8/8/1
Hole Diameter = 1mm
Distance between Holes = 8mm
Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.61
NRC = 0.75
Timberix™ Microperforated E8/8/1
Great World City, Singapore
Vanguard Interiors
Timberix™ E3/3/0.5
0.5mm diameter linear perforation spaced 3mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (3mm), and the last number refers to the hole diameter (0.5mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Microperforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Microperforated
Section Detail with Microperforated Pattern E3/3/0.5
Hole Diameter = 0.5mm
Distance between Holes = 3mm
Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.80
NRC = 0.89

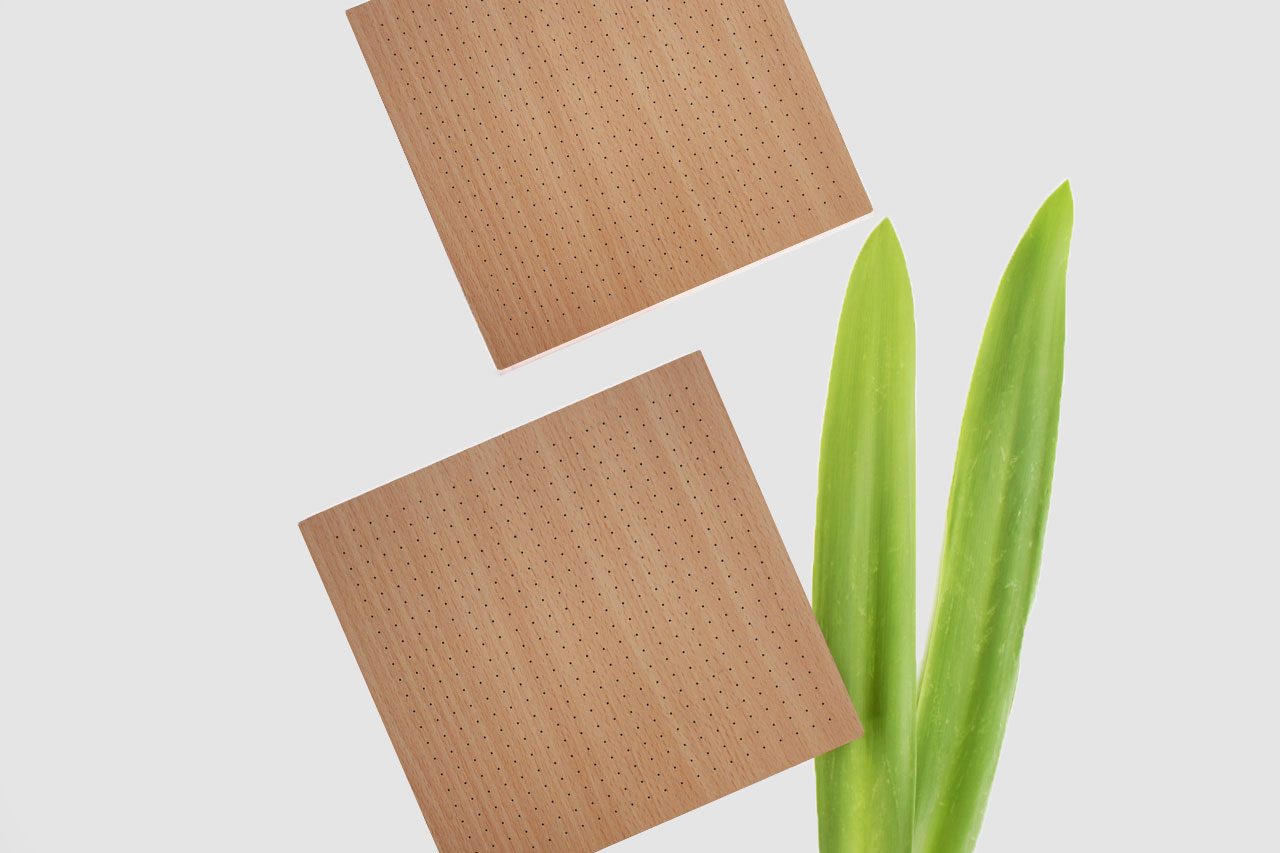

Timberix™ E8/8/0.5
0.5mm diameter linear perforation spaced 8mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (8mm), and the last number refers to the hole diameter (0.5mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Microperforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Microperforated
Section Detail with Microperforated Pattern E8/8/0.5
Hole Diameter = 0.5mm
Distance between Holes = 8mm

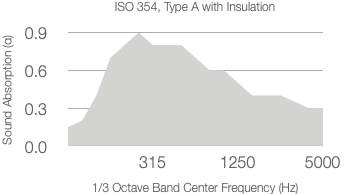

Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.78
NRC = 0.78
Timberix™
Microperforated E8/8/0.5
Timberix™ V4/4/1
1mm diameter staggered perforation spaced 4mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (4mm), and the last number refers to the hole diameter (1mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Microperforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Microperforated
Section Detail with Microperforated Pattern V4/4/1
Hole Diameter = 1mm
Distance between Holes = 4mm
Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.78
NRC = 0.75
Timberix™
Microperforated V4/4/1
Timberix™ V8/8/1
1mm diameter linear perforation spaced 8mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (8mm), and the last number refers to the hole diameter (1mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Microperforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Microperforated
Section Detail with Microperforated Pattern V8/8/1
Hole Diameter = 1mm
Distance between Holes = 8mm
Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.93
NRC = 0.75
Timberix™ V1.8/1.8/0.5
0.5mm diameter staggered perforation spaced 1.8mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (1.8mm), and the last number refers to the hole diameter (0.5mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Microperforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Microperforated
Section Detail with Microperforated Pattern V1.8/1.8/0.5
Hole Diameter = 0.5mm
Distance between Holes = 1.8mm

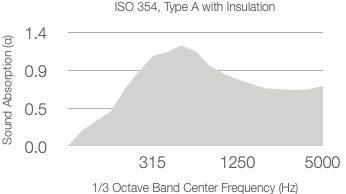

Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.85
NRC = 0.75

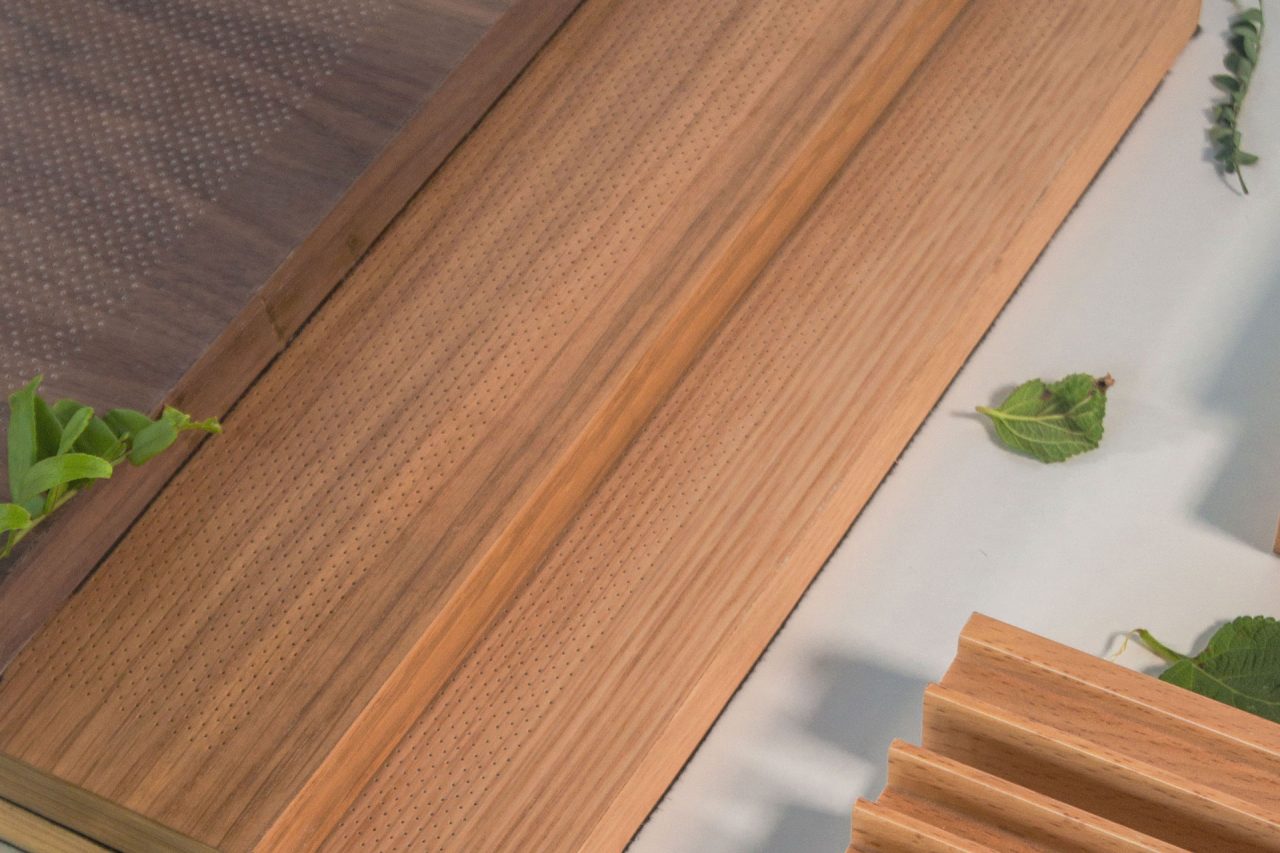

Timberix™
Microperforated V1.8/1.8/0.5
Timberix™ V3.6/1.8/0.5
0.5mm diameter staggered perforation spaced 3.6mm and 1.8mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (3.6mm), and the last number refers to the hole diameter (0.5mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Microperforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Microperforated
Section Detail with Microperforated Pattern V3.6/1.8/0.5
Hole Diameter = 0.5mm
Distance between Holes = 3.6/1.8mm
Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.87
NRC = 0.75

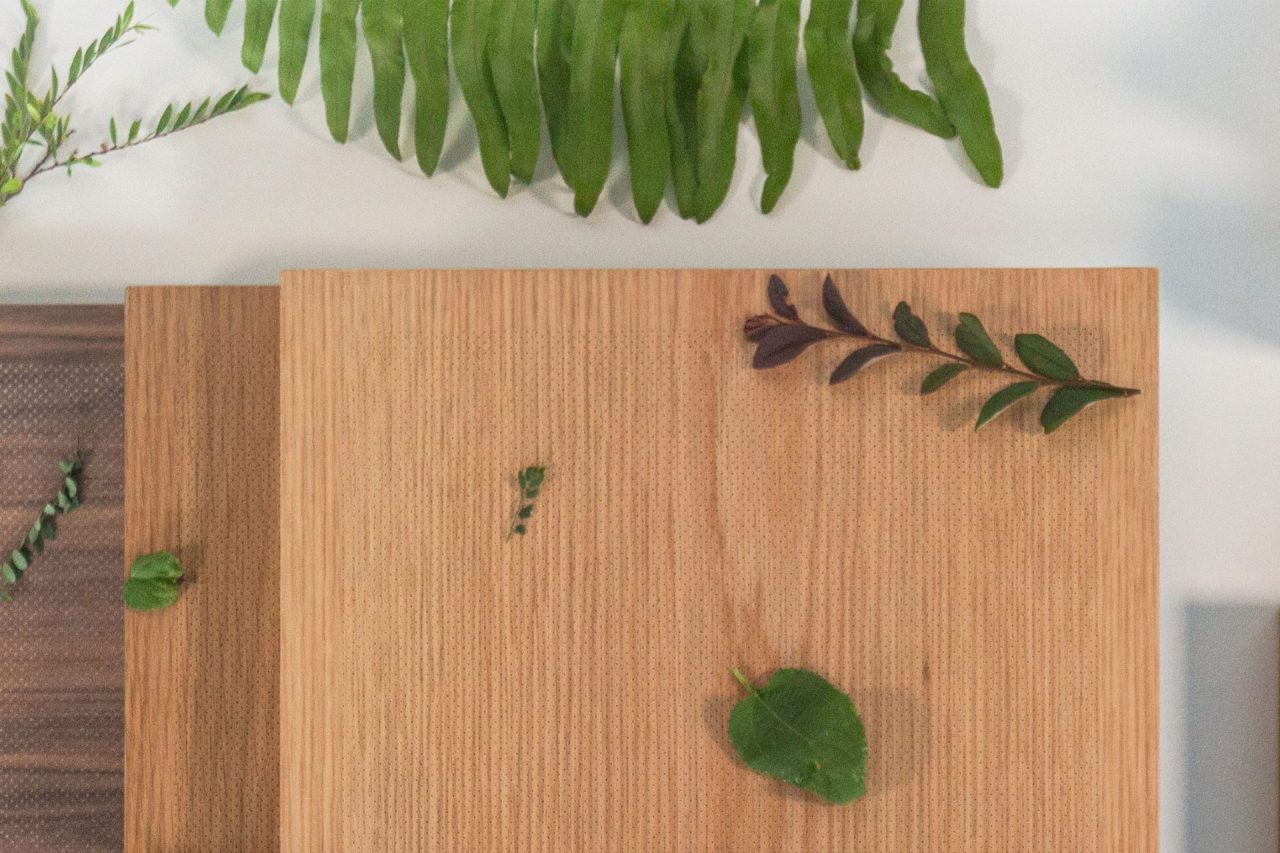

Timberix™
Microperforated V3.6/1.8/0.5
Timberix™ V4/4/0.5
0.5mm diameter staggered perforation spaced 4mm apart
▼
Our wooden perforated acoustic panel is made up of a series of perforations. Each panel has a machined groove joint for either a seamless or gap joinery. The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes (4mm), and the last number refers to the hole diameter (0.5mm). The surface comes in 4 types of finishing: paint, melamine, PP, and veneer. The base material can be made of MDF, fire-resistant MDF, eco-friendly MDF, black MDF, 3-layer composite, 5-layer composite or OSB.
Download Specification Sheet PDF
Microperforation Detail
The first alphabet refers to the hole arrangement (E is linear and V is staggered), the second pair of numbers refer to the distance between the two holes, and the last number refers to the hole diameter.
Drawing of Timberix™ Microperforated
Section Detail with Microperforated Pattern V4/4/0.5
Hole Diameter = 0.5mm
Distance between Holes = 4mm
Sound Absorption Coefficient
Timberix™ is tested to ISO 354 Standards, which is the measurement of sound absorption in a reverberation room. The difference in the reverberation times is a measure of the amount of absorption in the room.
SAA = 0.87
NRC = 0.89
Timberix™
Microperforated V4/4/0.5
