Fluted 29

Timberix™ Wooden Fluted 29 panels are crafted from eco-friendly E1 MDF, FR MDF, or MgO composites with PVC, veneer, or paint finishes. Featuring a standard dimension of 145mm x 2400mm and 12mm thickness, the fluted width is 29mm. Certified to EN 13986 and EN 13501-1 standards, these panels demonstrate compliant formaldehyde emission control and verified reaction-to-fire classification performance.

Specifications

Non-perforated

Technical Drawing

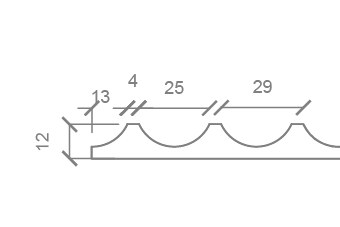

Line drawing of a cross-section with scalloped curves, labeled dimensions: 12 high, 13 wide for the first section, then 4, 25, and 29 for subsequent sections along the length.

Timberix™ technical drawings support architects and designers with dimensional data, profile configurations, fixing methods, and tolerances. The drawings detail patterns, panel build-ups, and mounting systems for specification and seamless integration.

Timberix-Non-Perforated-2

Eco-friendly

We prioritize sustainability and eco-friendliness in our design and manufacturing processes. Made from eco-friendly recyclable materials, these products reduce environmental impact by minimizing waste and promoting long-lasting performance.

Projects

Our projects encompass a broad spectrum, spanning from new building constructions to renovations. These projects involve various spaces, such as offices, auditoriums, concert halls, cinemas, libraries, hotels, and public areas.

Frequently Asked Questions

Timberix™ Fluted 29 panels are architectural timber acoustic panels featuring vertically or horizontally profiled flutes that create a rhythmic linear texture, combining decorative depth with acoustic functionality to enhance both visual impact and sound performance in interior spaces.

The fluted surface helps break up and diffuse sound reflections, while sound energy entering the gaps between flutes is absorbed by an acoustic backing installed behind the panel, reducing reverberation and improving acoustic comfort in echo-prone environments.

Fluted acoustic panels are widely used on walls and ceilings in offices, hospitality interiors, retail spaces, auditoriums, lobbies, and residential feature areas, especially where designers want controlled acoustics paired with a strong timber design statement.

Yes, Timberix™ Fluted 29 panels can be produced using various core materials such as MDF, fire-rated MDF, or eco-friendly boards, and finished with PVC, veneer, or painted surfaces, allowing flexibility across different interior styles and performance requirements.

Absolutely! Timberix™ Fluted 29 panels are manufactured using eco-friendly, recyclable materials and are designed to work with ISO-tested acoustic substrates, making them suitable for modern, sustainability-focused interior projects that demand both aesthetic quality and acoustic performance.
